plot_parallel_coordinate

optuna.visualization.matplotlib.plot_parallel_coordinate(study, params=None, *, target=None, target_name='Objective Value')

Plot the high-dimensional parameter relationships in a study with Matplotlib.

Note that, if a parameter contains missing values, a trial with missing values is not plotted.

See also

Please refer to optuna.visualization.plot_parallel_coordinate() for an example.

Parameters:

• study (Study) – A Study object whose trials are plotted for their target values.

• params (list[str] | None) – Parameter list to visualize. The default is all parameters.

• target (Callable[[FrozenTrial], float] | None) –

  A function to specify the value to display. If it is None and study is being used for single-objective optimization, the objective values are plotted.

  Note

  Specify this argument if study is being used for multi-objective optimization.

• target_name (str) – Target’s name to display on the axis label and the legend.

Returns:

A matplotlib.axes.Axes object.

Return type:

Axes

Note

The colormap is reversed when the target argument isn’t None or direction of Study is minimize.

Note

Added in v2.2.0 as an experimental feature. The interface may change in newer versions without prior notice. See https://github.com/optuna/optuna/releases/tag/v2.2.0.

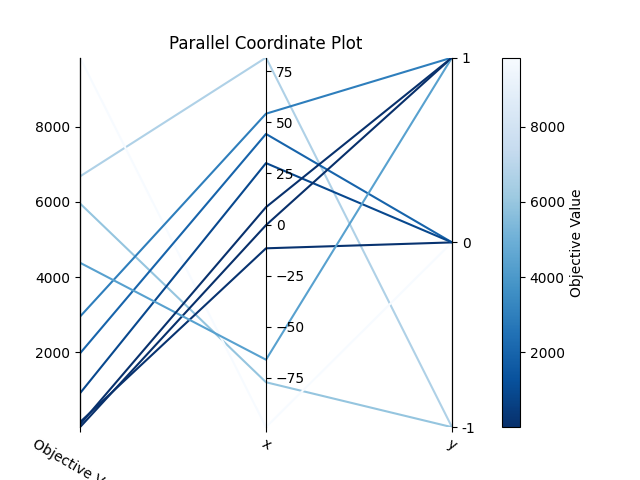

The following code snippet shows how to plot the high-dimensional parameter relationships.

/home/docs/checkouts/readthedocs.org/user_builds/himktoptuna/checkouts/latest/docs/visualization_matplotlib_examples/optuna.visualization.matplotlib.parallel_coordinate.py:25: ExperimentalWarning:

plot_parallel_coordinate is experimental (supported from v2.2.0). The interface can change in the future.


<Axes: title={'center': 'Parallel Coordinate Plot'}>

import optuna


def objective(trial):
    x = trial.suggest_float("x", -100, 100)
    y = trial.suggest_categorical("y", [-1, 0, 1])
    return x**2 + y


sampler = optuna.samplers.TPESampler(seed=10)
study = optuna.create_study(sampler=sampler)
study.optimize(objective, n_trials=10)

optuna.visualization.matplotlib.plot_parallel_coordinate(study, params=["x", "y"])
