plot_terminator_improvement

optuna.visualization.matplotlib.plot_terminator_improvement(study, plot_error=False, improvement_evaluator=None, error_evaluator=None, min_n_trials=20)

Plot the potentials for future objective improvement.

This function visualizes the objective improvement potentials, evaluated with improvement_evaluator. It helps to determine whether we should continue the optimization or not. You can also plot the error evaluated with error_evaluator if the plot_error argument is set to True. Note that this function may take some time to compute the improvement potentials.

See also

Please refer to optuna.visualization.plot_terminator_improvement().

Parameters:

• study (Study) – A Study object whose trials are plotted for their improvement.

• plot_error (bool) – A flag to show the error. If it is set to True, errors evaluated by error_evaluator are also plotted as line graph. Defaults to False.

• improvement_evaluator (BaseImprovementEvaluator | None) – An object that evaluates the improvement of the objective function. Default to RegretBoundEvaluator.

• error_evaluator (BaseErrorEvaluator | None) – An object that evaluates the error inherent in the objective function. Default to CrossValidationErrorEvaluator.

• min_n_trials (int) – The minimum number of trials before termination is considered. Terminator improvements for trials below this value are shown in a lighter color. Defaults to 20.

Returns:

A matplotlib.axes.Axes object.

Return type:

Axes

Note

Added in v3.2.0 as an experimental feature. The interface may change in newer versions without prior notice. See https://github.com/optuna/optuna/releases/tag/v3.2.0.

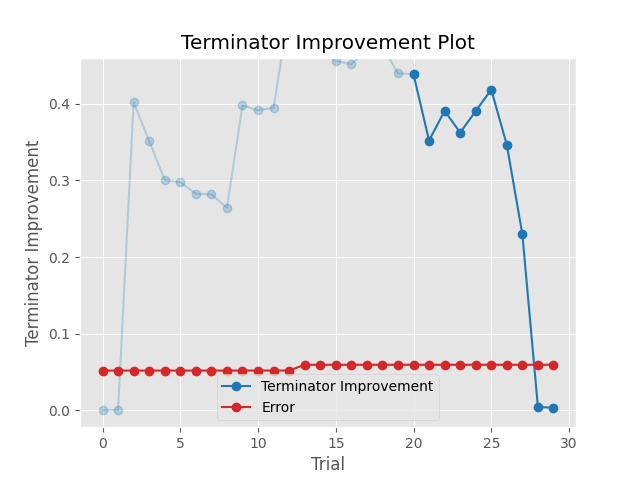

The following code snippet shows how to plot improvement potentials, together with cross-validation errors.
